[Makestreme] had always wanted to own a nice telescope, but found that budget would not stretch to anything above a cheap model with a limited 50 mm aperture. Wanting a better view of the heavens, the way forward was obvious—it was time to build a better telescope, instead!

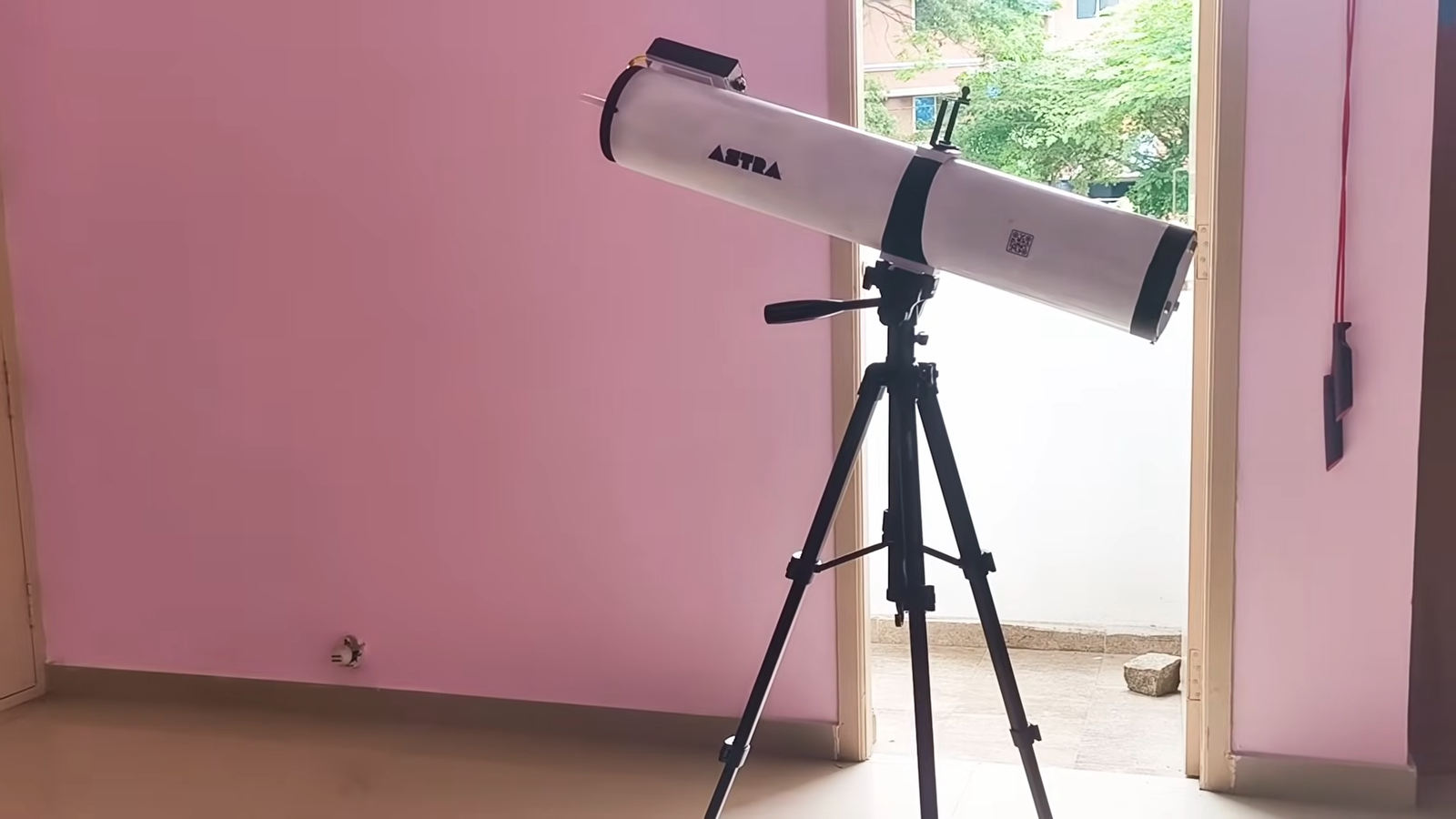

The build is based around a 114 mm diameter mirror sourced from Amazon. It’s assembled inside a length of 5-inch PVC pipe of just under a meter to suit the 900 mm focal length of the concave reflector. 3D printed components are used to mount the mirror and control its position for proper focus and collimation. Traditionally, a reflector based telescope would use a mirror and eyepiece to provide a view to the user. However, [Makestreme] built this as a smart telescope, instead integrating a Raspberry Pi Camera Module 3 at the focal point. It’s connected to a Raspberry Pi Zero 2W, running off an 18650 lithium-ion cell and a 5 V boost module for portability. The Pi runs a Python script that hosts a small web server allowing access to the live camera feed along with controls for brightness, exposure, and gain. [Makestreme] then uses apps like SkyMap and SkEye to help aim the telescope at astronomical elements of interest.
If you’ve ever wanted to explore the heavens from down on Earth, building your own telescope is a great way to start. A camera-based build like this one can be a bit simpler than traditional builds, too, without the fuss of having to install an eyepiece.
